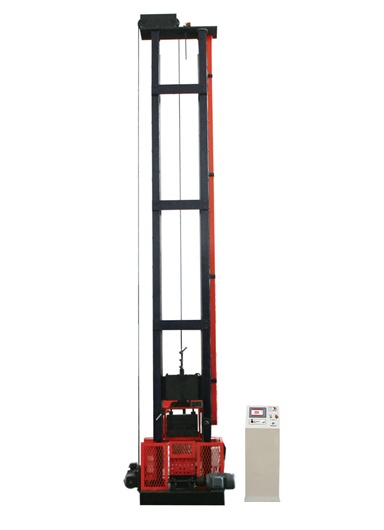

JL-3000 No Plastic Transition Temperature Drop Hammer Impact Test Machine



This machine is used for no plastic transition temperature test for ferrite steel. NDT temperature is the highest temperature while standard sample breaking according to ASTM E208-2006、GB/T 6803-1986 standard.It shows the highest temperature of the cracked steel under dynamic load yield stress.





This machine is composed of host frame, lifting, hammer, anvil bed, safety protection and control system.The impact energy is adjusted through adjustment of weight Thallium quantity and impact height.It has the function of preventing the secondary impact and automatic feeding.Accurate and fast sample centering, energy range stepless adjustable, energy automatic display. Touch screen display, highly automatic.





Main Technical Parameter


Model

JL-3000

Total Hammer

(Weight Thallium:15Kg/Piece, 4 Piece)

Basic Hammer Weight

30kg

Hammer Head Quality Error

≤±1%

Weight Thallium Quality Error

≤±0.5%

Max. Test Force

3000J

Striking Energy Range

350~3000J

Max. Impact Height

3400mm

Lifting Speed

0-3000mm/min(Stepless)

Verticality between Column and  Base

0.5mm

Levelness between columns

0.5mm

Sample Centering Accuracy

±1mm

Hammer Radius

25mm

Lifting Height Indicating Error

≤0.3﹪mm

Lifting Height Resolution

1mm

Hardness of Support and End Table of  Punching Pin and Anvil Bed

>58HRC

Work Levelness

0.1/1000mm

Weight

2600kg

Work Noise

<75dB

Power

2KVA
