Low-temperature Test Chamber

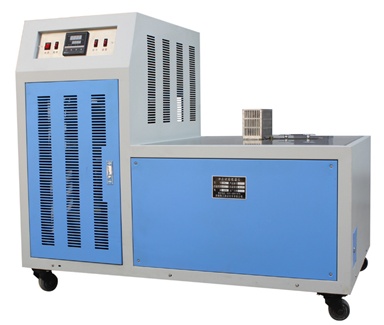

CDW-100 Pendulum Impact Testing Low-temperature Chamber(Low-temperature tank)

1. Usages and characteristics:
CDW-100-type low-temperature impact testing meter is the compressor refrigeration of the latest research and development in accordance with cooling requirement of GB229-2007 "metal Charpy notched impact test method". This equipment used cascade compression engine refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007, EN10045-2, E23-02A of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
2.Main technical parameters:
1. Temperature range: room temperature~-100℃ (room temperature: ≤ 25 ℃)
2. Temperature accuracy: ± 0.5℃
3. Cooling speed: room temperature ~ 0 ℃ about 2.0 ℃ / min
                                            0 ℃ ~ -40 ℃  about 1.5 ℃ / min
                                         -40 ℃ ~ -60 ℃  about 1.2 ℃ / min
                                              -60 ℃ ~ 100 ℃  about 0.8 ℃ / min
4. The maximum dimension of external form : 1300×800×1000mm
5.The effective working space: 275× 160× 120mm
6. The sample quantity can be loaded :> 60(the impact of sample size: 10 × 10 × 55mm)
7. Digital timer: 1 min -999 minutes, 1 minute resolution
8. Cooling medium: ethanol or other Ice-free liquid.
9. Stirring motor: 23W
10. The Working power: 220V ~ 240V, 50HZ, 3.5KW
11.The operation environment temperature: 5℃~25℃
