LDS Digital Display Tensile Tester

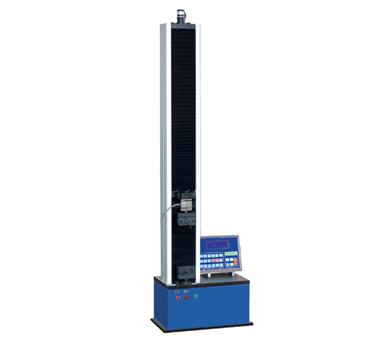

LDS-1 Digital Display Electronic Universal Testing Machine


1 Function and Usages

   This machine is mainly used various nonmetal and composite material for conventional mechanical performance index test. Professional design of automatic control and data acquisition system, realized the data acquisition and control process of all digital adjustment. It can do tensile, compression, and bending machine to materials. This equipment is suitable for aerospace, petrochemical, waterproofing materials, electric wire and cable, spring, textile, fiber, rubber, ceramics, food, pharmaceutical packaging, geotextile fabric, thin films, wood, paper and other manufacturing and product quality supervision departments at all levels, and it also applies to colleges and universities teaching demonstration work.

2 Main Technical Index

1) The scope of the accurate measurement of test force: 40N-1000N;

2) Test power sub-file: × 1, × 2, × 5

3) Accuracy of test force measurement: 20% of each file, better±1% of indicating value;

4) Measurement range of speed: 10~500mm/min;

5) Accuracy of speed measurement: ±1%;

6) Tensile space: 0~650mm

7) Compression space: 0~650mm

8) Supply power: 0.4KW, 220V, 50Hz.
