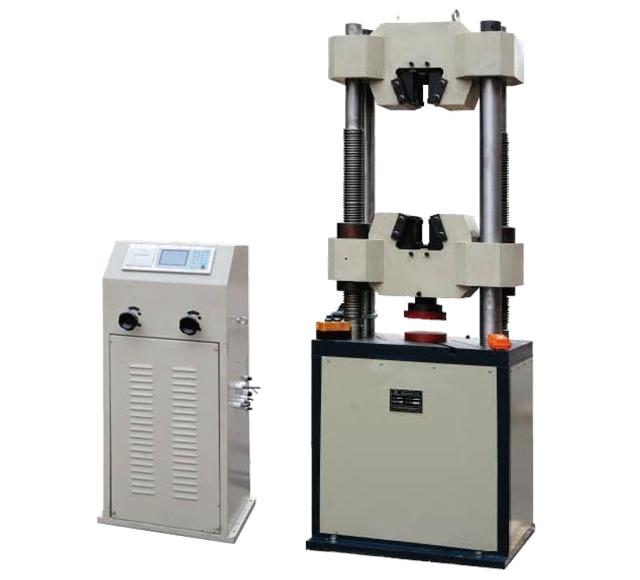

WES-600B Digital Display Universal Testing Machine



WES-600B Digital Display Universal Testing Machine


Performance introduction:

It can process the test of tensile, compression, bending and cutting of all kinds of metal material as well as the test of compression test of plastics, cement and concrete and other nonmetal material. Adding simple accessories, it also can do a variety of performance tests of belts, chains, steel wires, welding electrodes, tiles and component parts. This machine adopts underlying cylinder, highness is low, and weight is light. It is especially applicable for engineering apartments.

Electronic dynamometry and LCD display test force-time curve, test force, peak value of test force, yield force of material owning obvious yield feature. You can see test data intuitively. You can input sample number, cross sectional area and test tensile strength, yield strength and other mechanical properties. Besides, you also can print test results.


Main technical parameters

Model                       WES—600B

The Maximum test force (KN) 600KN

Measurement range  The whole does not divide classes , equivalent 3 steps

Range of measuring force            4%-100%F.S

Test Force Resolution 0.1KN

Test force value relative error  ≤ ±1%

Tensile space  650 mm

Compression space 380 mm

Grip manner  Manual grip

Grip diameter of round specimen  Φ13-40mm

The thickness of flat specimen grip 0—15mm

Max. gripping width of flat specimen  75mm

Upper and lower platen size (mm) φ160 mm

Bending test pressed rolling distance 450 mm

Tensile and compression space between two columns 450 mm

Electromotor power of oil pump   1.1KW

Move electromotor power of moving beam  0.75KW

Exterior size of host  720×580×1950

Weight  2000Kg
