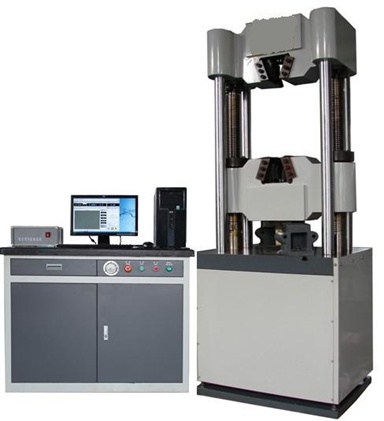

WAW-1000B Computer Control Electro-hydraulic Servo-controlled Universal Testing Machine



ⅠEquipment name: Electro-hydraulic Servo-controlled universal testing machine (Six Column)

Ⅱ Model:WAW-1000B Ⅲ Usages and characteristics:

    This machine adopts the electro-hydraulic servo technology, the automatic controlling of the testing force, displacement, speed by the microcomputer, and the full implementation of automation from the experimental data acquisition to processing and printing, the test can be carried out. Highly effective in accordance with national standard of GB228-2002, the sample folder adopts hydraulic chuck; it is easy to operate, safe and reliable. It can not carry out the conventional tests of material pulling, pressing, bending, shear, it also provides a wide range of attachment necessary for the special testing.

Ⅳ The main technical parameters:

 1. Max. test power: 1000KN 2. Measuring range: 2%~100%FS(full range)

3.Accuracy class:1 class4. Test force error of indication: within ± 1%

5.Resolution ratio of test force:0.01kN

6. Resolution ratio of deformation:0.001mm

7. Resolution ratio of displacement:0.01mm

8.Clamp type:hydraulic grip

9.Trow of a piston:200mm

10.Max. movement speed of piston:100mm/min11. Maximum distance of tensile space: 800mm 12.Round specimen clamp diameter: φ20-φ60mm 13. Thickness of flat specimen gripping: 0-40mm

14. Maximum distance of compression space:800mm

15.Platen size:205×205mm

16. Bending test pressed rolling width:150mm 17.Dimensions: (1080×700×2500)mm18.Weight: about 3500kg

19.Power:380V,50Hz,2.5kW
