YAW Electro-hydraulic Pressure Tester

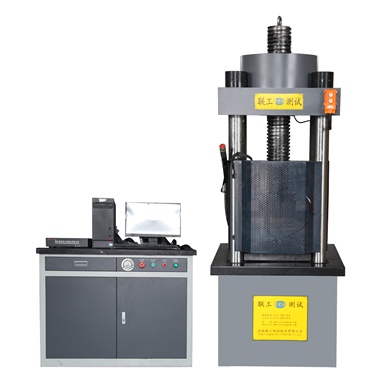

YAW-2000 Automatic Compression Testing Machine



Usage

This machine is mainly used for the compression strength test of brick, stone, cement, concrete, etc, also it can be used for other material’s compressive performance test.


Main Technical Parameter

Max. Test Force                                     2000Kn

Test force Measurement Range kN                   4%-100%FS

Test Force indicating Error                           ≤indicating value±1%

Test Force Resolution                               0.01kN

Hydraulic Pump Pressure Pressure Rated             40MPa

Upper and Lower Pressure Plate Size                 370×370mm

Max.distance between upper and lower pressure plate   330mm

Pinson Diameter                                     φ250mm

Pinson Stroke                                        50mm

Motor Power                                         Three Phase 0.75Kw

Weight                                                 750Kg
