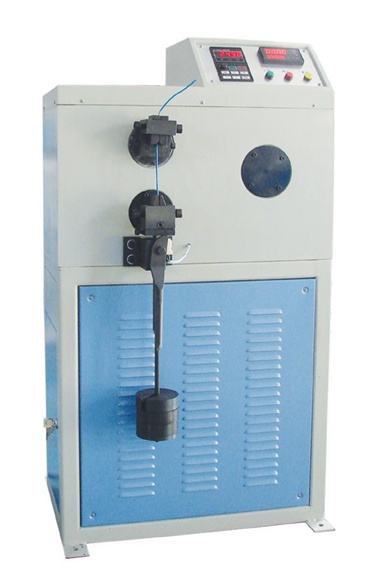

JWJ-10 Power-driven Metal Wire Repeated Bending Testing Machine



JWJ-10 Power-driven Metal Wire Repeated Bending Testing Machine


Usage and Characteristics


This testing machine is mainly used for repeated bend test of metal wire and testing performance and defect of bearing plastic deformation at the process of bending metal wire repeatedly. You can operate on digital display screen and it shows bend times. It can also process sheet metal bend test after using sheet clamping device. It is widely used for steel and building as well as steel wires, eletrical wires, cables and other industries.


Main Techinical Parameters


Range of specimen diameter     (¢1-¢10)mm


Specimen Length                    (150-200)mm


Bend Angle                            ±90°


Bend Speed                           <60 times/min


Count Range                          0-99999999times


Dimensions                            1000x600x300mm


Weight                                  210Kg


Power                                   380V 50Hz 2.2Kw
