Spring Tensile Compression Tester

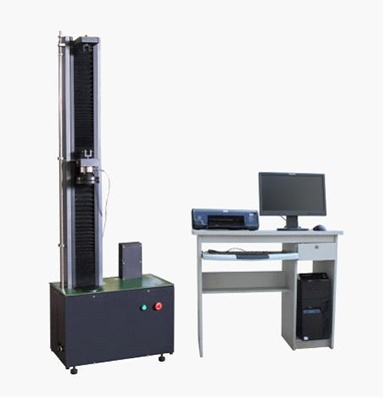

TLS-W2000N Computer Control Spring Tensile and Compression Tester


Main Parameter

1. Max. test force: 2000N

2. Test force measuring range: full range of 5% - 100%

3. Displacement resolution: 0.01 mm

4. Displacement measurement accuracy: better than ±1% of the indication value

5. Displacement speed measuring scope: 0.01-500mm/min

6. Displacement speed controlling precision: ±1%

7. Compression space: 0-650mm, under linking piece for displacement zero.

8. Software and user interface: Windows 98, 2000, XP, NT operating environment of software and interactive human-machine conversation interface,

9. The power supply: 220V, 50Hz
