DWTT Drop-weight Tear Tester

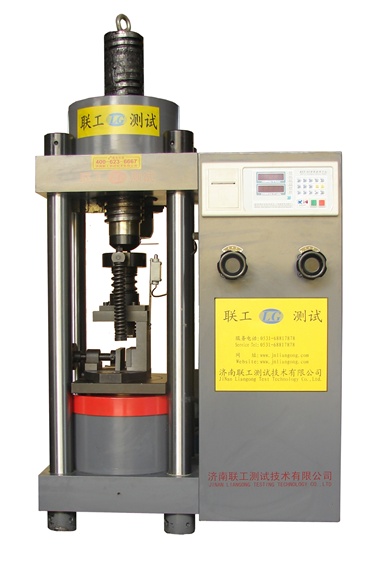

TLC-200T Ferrite steels drop-weight sample gap sampling machine series




Usage and Characteristics
This machine is a specialized equipment with the advanced domestic technology level, which was based on the actual needs of customers in accordance with the GB/T8363-2007of the gap. With the hydraulic loading, this machine can form a gap once and also can run steadily when making the specimen gap. It uses single-chip controlled technology, the operation is simple and can control accurately. The press sword has a long service life, every knife can make thousands of samples.
Main technical parameters
Max. pressure load: 2000KN
Height of Compression space: 360mm
Angle of opening: 45°±2°
Depth of opening: 5±0.5mm
Bottom of opening R: 0.025-0.023+0.013mm
Load mode: hydraulic loading
Power:  380V 50Hz 3KW
