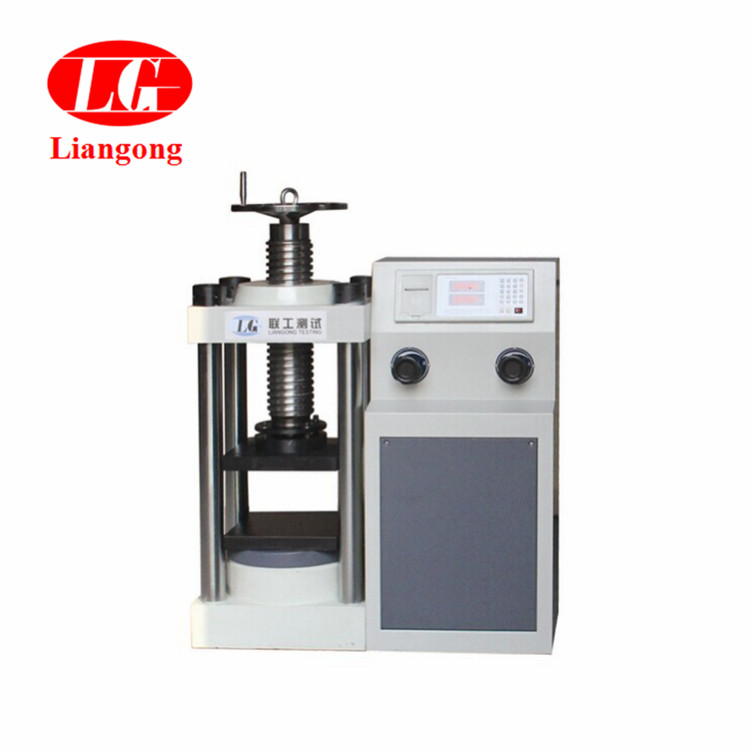

YES-1000 Compression Testing Machine (Manual Screw)
1. Function
This machine mainly used for the compressive strength test to brick, stone, cement, concrete materials, which can also be used to other materials compressive performance tests.
The machine adopts hydraulic add load, electronic force measurement, with load digital display, add load rate display, and keep the maximum load value, overload protection and power outages data keep etc.
2. Technical parameters
|
Max. testing force |
1000KN |
|
Measurement range |
4%-100%FS |
|
Relative error of test force value: |
≤±1% |
|
Leading screw adjusting mode |
Electronic |
|
Add load velocity error |
±5% |
|
Motor power |
0.75 KW |
|
Pressure plate size |
220×300mm |
|
Max. distance between up and below pressure plate |
320mm |
|
Max. piston stroke |
30mm |
|
Piston diameter |
φ250mm |
|
System work pressure |
40Mpa |
|
Host dimension (mm) |
820×550×1300 |
|
Weight |
1000Kg |
