YES Digital Display Pressure Tester

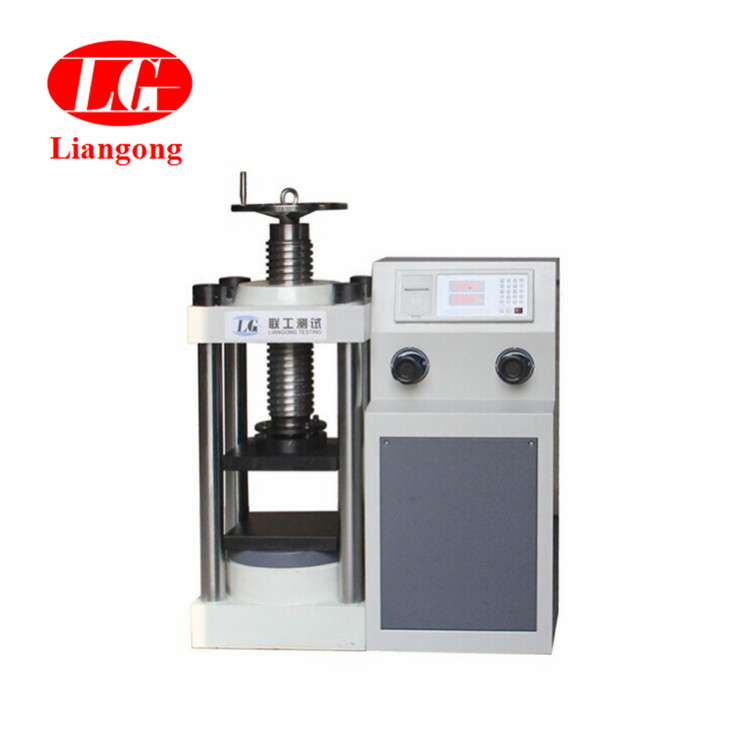

YES-2000 Compression Testing Machine (Manual Screw)


1. Function

This machine mainly used for the compressive strength test to brick, stone, cement, concrete materials, which can also be used to other materials compressive performance tests.

The machine adopts hydraulic add load, electronic force measurement, with load digital display, add load rate display, and keep the maximum load value, overload protection and power outages data keep etc.

2. Technical parameters

Max. testing force 2000KN

Measurement range        4%-100%FS

Relative error of test force value: ≤±1%

Leading screw adjusting mode Electronic

Add load velocity error ±5%

Motor power 0.75 KW

Pressure plate size 220×300mm

Max. distance between up and below pressure plate:320mm

Max. piston stroke                            30mm

Piston diameter                                  φ250mm

System work pressure                       40Mpa

Host dimension (mm)                              820×550×1300

Weight                                            1000Kg
