YAW Electro-hydraulic Pressure Tester

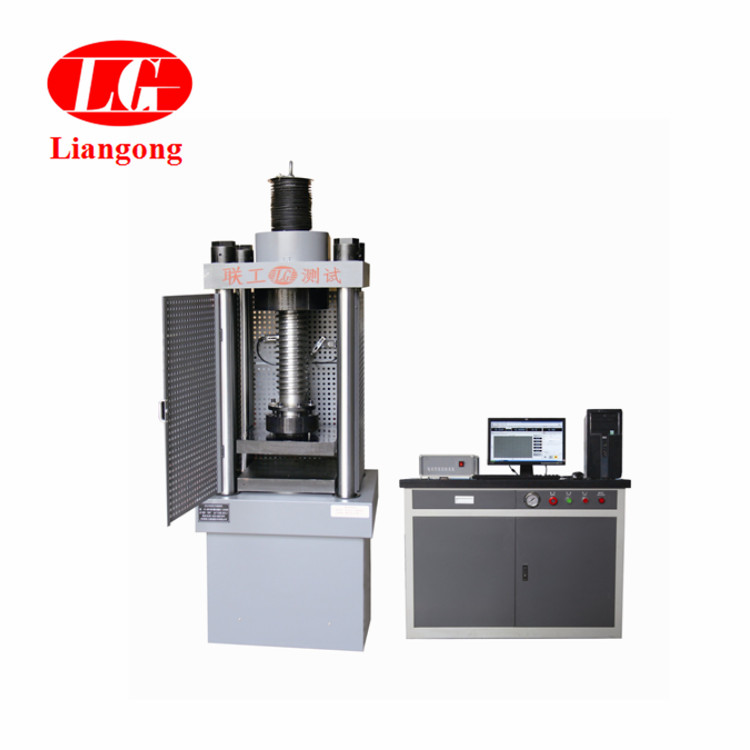

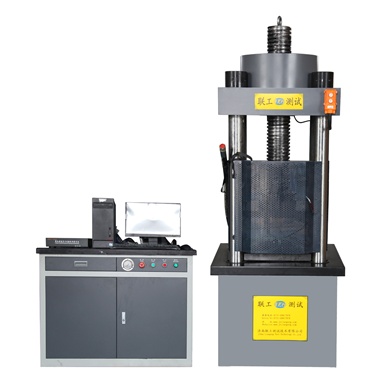

YAW-3000 Automatic Compression Testing Machine

1.Usage

This machine is mainly used for the compression strength test of brick, stone, cement, concrete, etc, also it can be used for other material’s compressive performance test.

2.Main Technical Parameter

Max. Test Force	3000kN
Test force Measurement Range kN	4%-100%FS
Test Force indicating Error	≤indicating value±1%
Test Force Resolution	0.01kN
Hydraulic Pump Pressure Pressure Rated	25MPa
Upper and Lower Pressure Plate Size	450*450mm
Max.distance between upper and lower pressure plate	450mm
Piston Diameter	Φ400mm
Piston Stroke	100mm
Motor Power	Three Phase 0.75Kw
Dimensions	8007701900mm
Weight	About 2000Kg
