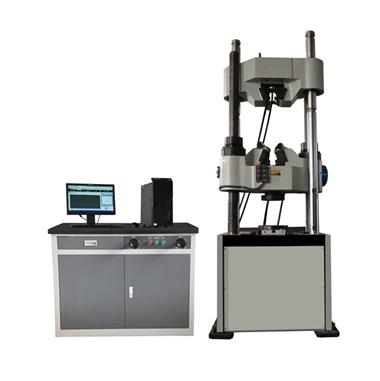

WEW-300C Microcomputer Screen Display Universal Testing Machine

1. Model and name

WEW-300C Microcomputer Screen Hydraulic Universal Testing Machine(worm gear operated)

2. Equipment Usage

This machine adopt the oil cylinder down-setting type, is mainly used for metal, nonmetal tensile, compression, bending and shear test. Test operation and data processing in accordance with GB/T 228-2010 "metallic materials tensile testing" requirement, if change the structure and related parts replacement and can meet the ASTM, ISO and other international standards requirements. The machine is suitable for metallurgy, construction, light industry, aviation, space, materials, tertiary institutions, scientific research units, etc.

3. Main Technical Parameters:

Max. Test force: 300KN

2. Measurement range of test force : 2%～100%FS (full scale)

3. Test force value relative error: ≤±1%

4. Deformation measurement accurancy: ±0.5%F.S

5. Displacement resolution: 0.01mm

6. Maximum tensile test space: 1000mm

7. Maximum compression test space: 900mm

8. Round specimen clamping range: φ6-φ26mm

9. Shear specimen diameter： φ10mm

10. Flate specimen clamping width: 70 mm

11. Flate specimen clamping thickness: 0-15mm

12. Pressure plate size: φ180mm

13. Piston stroke: 250 mm

14.Bending supporting roller spacing: 160mm

15. Bending supporting roll width: 140mm

16. Deformation measurement: an extensometer, standard gage 50 mm, maximum deformation 10 mm

17. Software and the user interface: WINDOWS operating software and interactive man-machine conversation interface

18. Power: three phase four wire system（380V±10%，50Hz）, 2 kw

19. The host dimension：（905×580×2325）mm

20. Weight of the host： about 2300Kg
