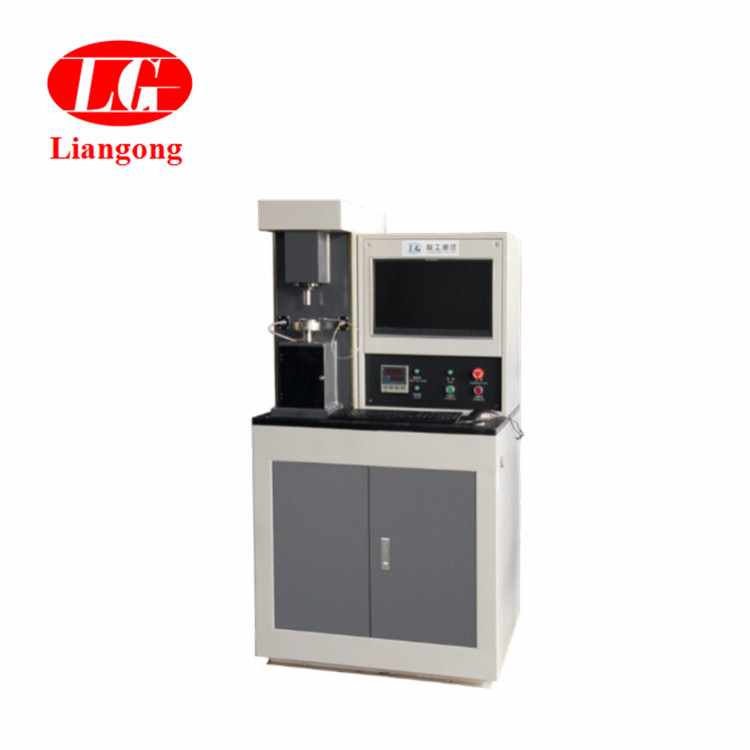

MMW-1A Vertical Universal Friction and Wear Testing Machine

Main use

 It can be used to assess lubricant, metal, plastic, coating, rubber, ceramics and other materials friction and wear. Not only can satisfy traditional petrochemical industry user research, development, testing a variety of highgrade series of hydraulic oil, engine oil, gear oil demand, can also satisfy the new materials, new technology research development of user simulation evaluation test demand.

   Under a certain contact pressure, the machine has the friction form of rolling, sliding or sliding-rolling compound motion, and has a stepless speed regulation system. It can be used to evaluate the friction and wear properties of lubricants, metals, plastics, and coatings at extremely low or high speeds. Such as low-speed pin disc (with large disc and small disc, single needle and three needle) friction function, four-ball long-term wear resistance and four-ball rolling contact fatigue, ball-bronze three-piece lubrication performance, and tests of thrust washer, ball-disk, mud wear, lip seal torque and stick-slip friction performance of rubber seals. The MMW-1 testing machine has a wide range of applications in various professional and technical fields of tribology, petrochemicals, machinery, energy, metallurgy, aerospace, universities, research institutes (institutes) and other departments.

Conformed Standard

SH/T  0189-92 Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus

ASTM D3702-94 Standard Test Method for determining friction performance of material by Thrust ring.

ASTM G99-04 Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus.

Main technical parameters
