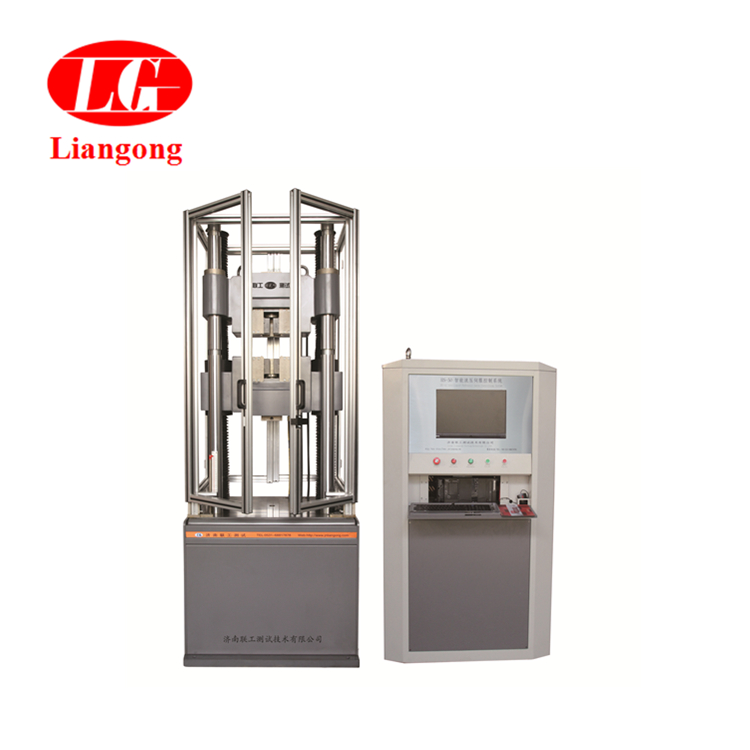

WAW-4605-E Computer Control Electro-hydraulic Universal Testing Machine

1. Model and Name

WAW-4605-E Computer Control Electro-hydraulic Universal Testing Machine

2. Usage

This machine adopts the electro-hydraulic servo technology, the automatic controlling of the testing force, displacement, speed by the microcomputer, and the full implementation of automation from the experimental data acquisition to processing and printing.

It adopts cylinder down-setting host, mainly used for metal, nonmetal tensile, compression, bend and shear tests. It is applicable to metallurgy, construction, light industry, aviation, spaceflight, materials, universities and colleges, scientific research institutes and other fields. The test operation and data processing accord with GB/T228-2010, < Room-temperature Materials Mental Tensile Testing Method >.

3. Main Technical Parameter:

1. The maximum test force: 600KN

2. Accuracy Glass: 0.5 Class

3. Number of Column: Six Column

4. Test Force measurement range: 2%~100%FS (Full Scale)

5. Test force and value error: ± 0.5% of indicating value

6. Test force resolution value: 1/300000

7. Test force acquisition rate: adjustable, max.1000/s

8. Deformation Measurement Range:1%-100% of extensometer range

9. Deformation indication error:± 1% of indicating value

10. Deformation resolution:1/300000

11. Deformation acquisition rate: adjustable, max.1000/s

12. Displacement Indication Error:± 1% of indicating value

13. Displacement Resolution: 0.01mm

14. Pinson Stroke:250mm

15. Pinson Max. Speed: 100mm/min

15.Displacement Movement Speed Range:0.01-80mm/min(Stepless Adjustable)

16. Clamping Method: Hydraulic

16. Max. Tensile Test Space:820mm

17. Round Sample Clamping Diameter:φ10-φ40mm

18. Flat Sample Clamping Diameter: 2-30mm

19. Width between two columns:545mm

20. Max. Compression Test Space:720mm

21. Pressure Plate Size:204x204mm

22. Bending Test Roller Space:Adjustable

23. Bending Test Branch Roller Width:140mm

24. Bending Test Roller Diameter: φ30mm

25. Host Dimension: (898×764×2400)mm

26. Oil Source Dimension: (1120×600×849)mm

27. Weight: About 2800Kg

28. Voltage: 380V/50Hz/3Phase (can be customized),1.5kw
