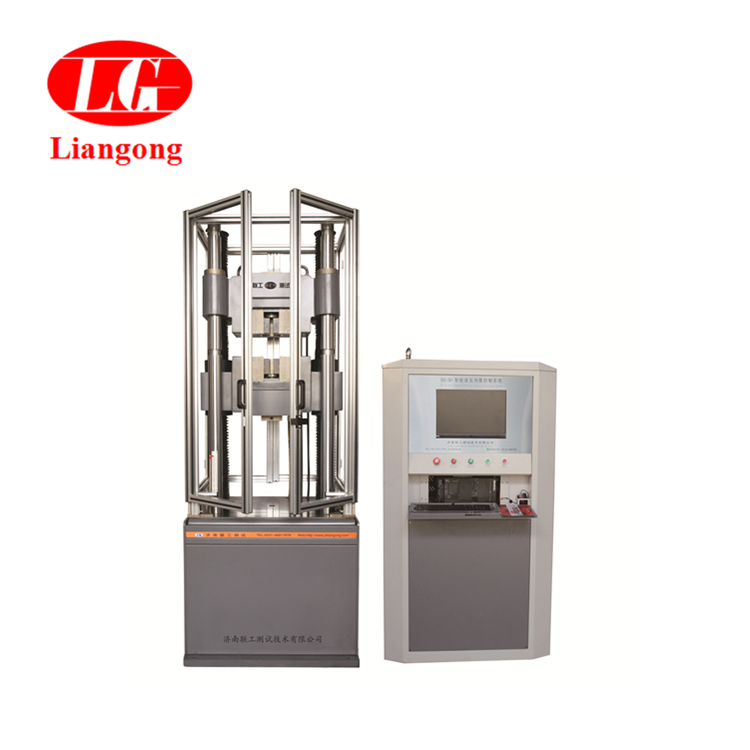

WAW-4106-E Computer Control Electro-hydraulic Universal Testing Machine

1. Model and Name

WAW-4106-E Computer Control Electro-hydraulic Universal Testing Machine

2. Usage

This machine adopts the electro-hydraulic servo technology, the automatic controlling of the testing force, displacement, speed by the microcomputer, and the full implementation of automation from the experimental data acquisition to processing and printing.

It adopts cylinder down-setting host, mainly used for metal, nonmetal tensile, compression, bend and shear tests. It is applicable to metallurgy, construction, light industry, aviation, spaceflight, materials, universities and colleges, scientific research institutes and other fields. The test operation and data processing accord with GB/T228-2010, < Room-temperature Materials Mental Tensile Testing Method >.

3. Main Technical Parameter:

1. The maximum test force: 1000KN

Accuracy Glass: 0.5 Class

Number of Column: Six Column

Test Force measurement range: 2%~100%FS (Full Scale)

Test force and value error: ± 0.5% of indicating value

Test force resolution value: 1/300000

Test force acquisition rate: adjustable, max.1000/s

Deformation Measurement Range:1%-100% of extensometer range

Deformation indication error:± 1% of indicating value

Deformation resolution:1/300000

Deformation acquisition rate: adjustable, max.1000/s

Displacement Indication Error:± 1% of indicating value

Displacement Resolution: 0.01mm

Displacement Range:250mm

Displacement Movement Speed Range:0.01-80mm/min(Stepless Adjustable)

Max. Tensile Test Space:850mm

Clamping Method: Hydraulic

Round Sample Clamping Diameter:φ15-φ55mm

Flat Sample Clamping Diameter: 2-40mm

Width between two columns:650mm

Max. Compression Test Space:750mm

Pressure Plate Size:204x204mm

Bending Test Roller Space:520mm

Bending Test Branch Roller Width:140mm

Bending Test Roller Diameter: φ40mm

Host Dimension: (1064×866×2705)mm

Oil Source Dimension: (1120×600×849)mm

Weight: About 4600Kg

28. Voltage: 380V/50Hz/3Phase (can be customized),2.5kw
