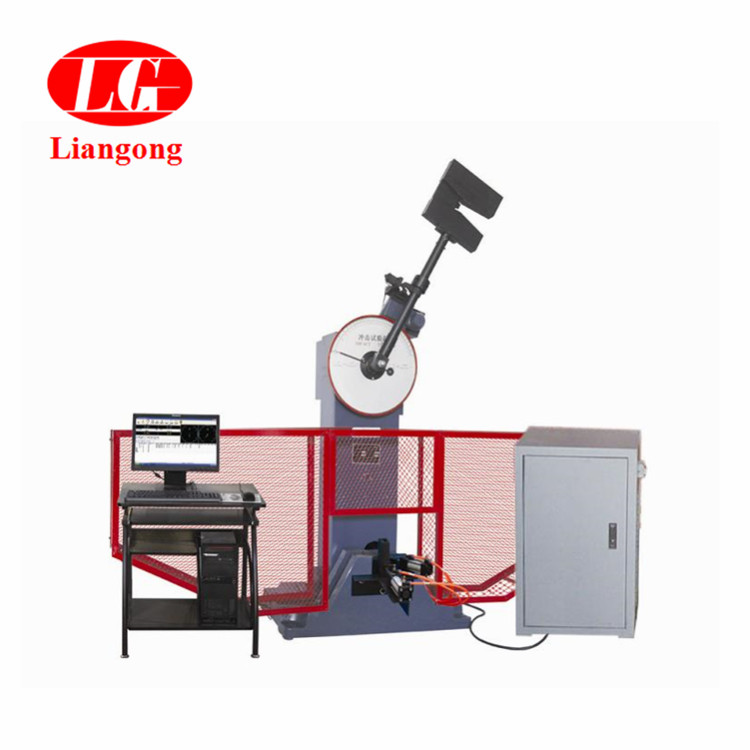

JBW-300Z/500Z Computer Control Room Temperature Automatic Impact Testing Machine
Main technical parameters
|
Clutch torque force |
630 N·m |
1000 N·m |
|||
|
Impact energy |
300J |
150J |
500J |
250J |
|
|
Value of every grid |
2J |
1J |
5J |
2.5J |
|
|
Moment of pendulum |
160.7695N·m |
80.3848N·m |
267.9492N.m |
133.9746N.m |
|
|
Impact speed |
5.2m/s |
5.4 m/s |
|||
|
Distance between pendulum center and sample center |
750mm |
800mm |
|||
|
Pendulum Preparing Angle |
150° |
||||
|
Span of Specimen Seat |
40mm |
||||
|
Jaw fillet of specimen seat |
R（1.0～1.5）mm（1mm is special order） |
||||
|
Fillet of impact blade |
R（2.0～2.5）mm（8mm is special order） |
||||
|
Included angle of impact knife |
30° |
||||
|
Thickness of impact knife |
16mm |
||||
|
Dip angle of specimen seat |
11° |
||||
|
Specification of specimen |
（10×10、7.5、5×55）mm |
||||
|
Speed of delivery |
≤4S |
||||
|
Capacity of specimen box |
10 |
||||
|
Dimension (LxWxH) |
（800×500×1275）mm |
||||
|
Power Supply |
～380V 50Hz 250W |
～380V 50Hz 380W |
|||
Advantages
1. The host of this machine adopts casting steel material, which can make the equipment run steadily in the whole process of test and get more accurate result.
2. Transporting structure of our impact testing machine adopts pneumatic and automatic transporting samples to overcome the difficulty of centering specimen every time, the whole process only needs less than 4 seconds, to improve working efficiency.
3. The host is PLC automatically control, which has high stability and strong anti-interference ability.
4. Computer control and all the result of test can be saved in computer, be printed and be uploaded.
